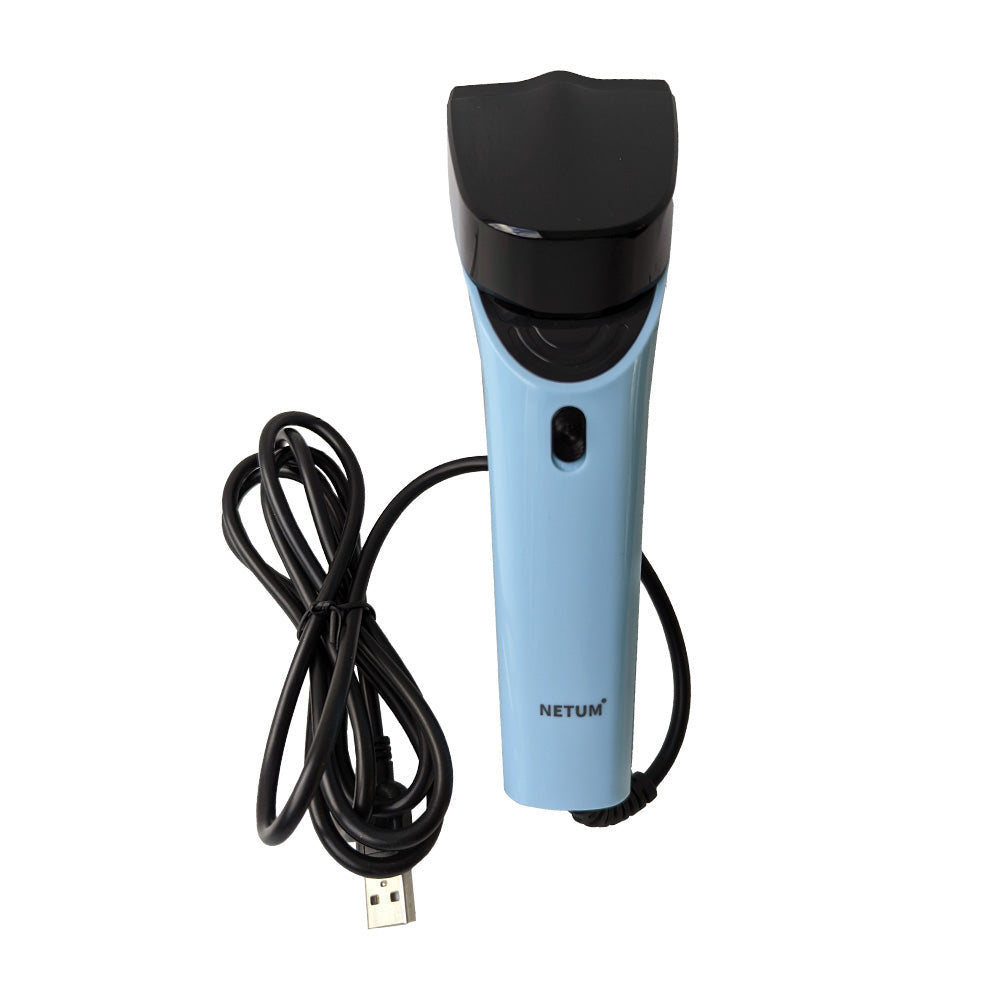

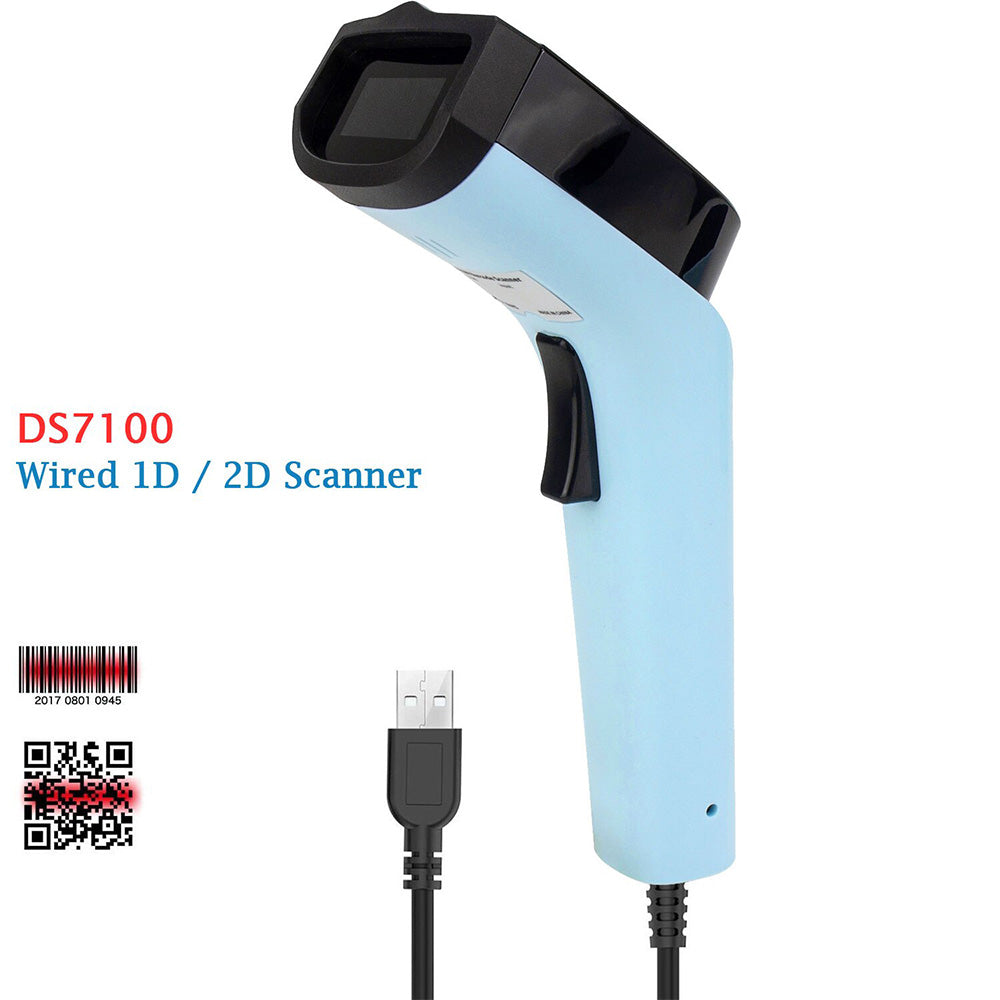

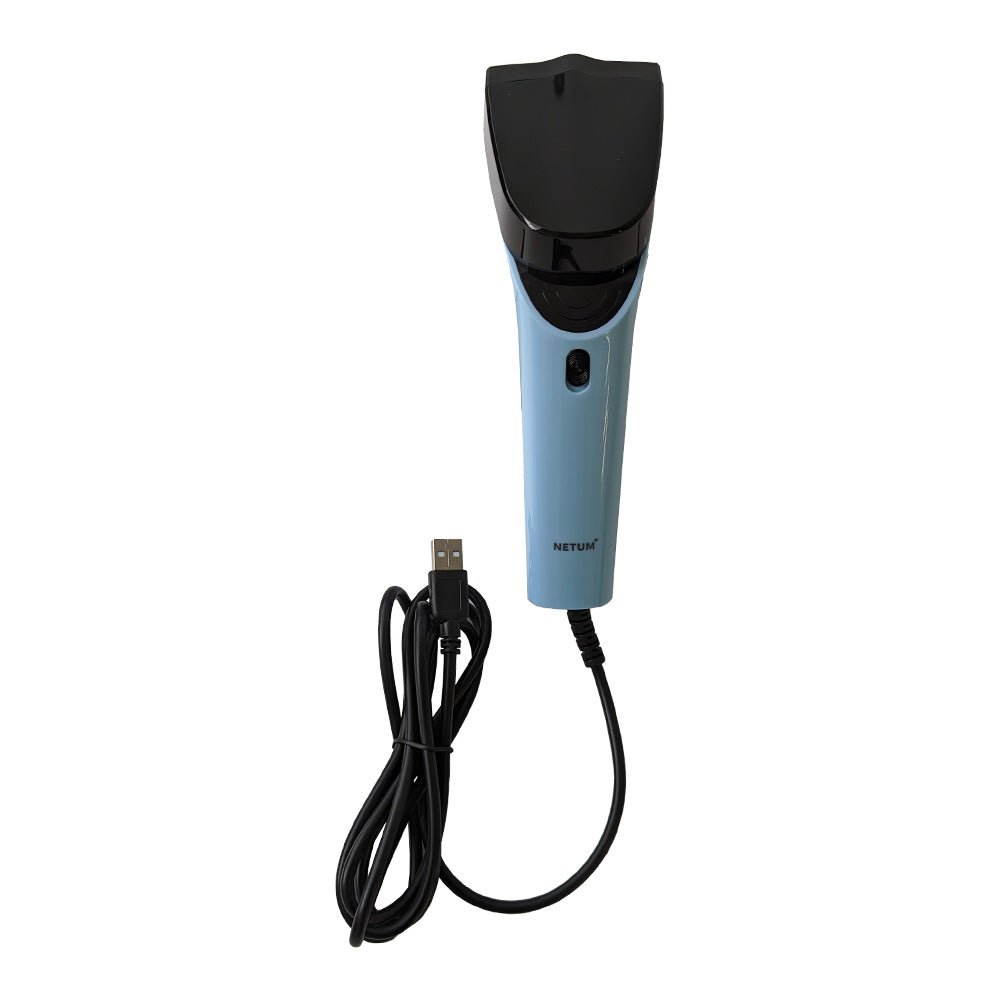

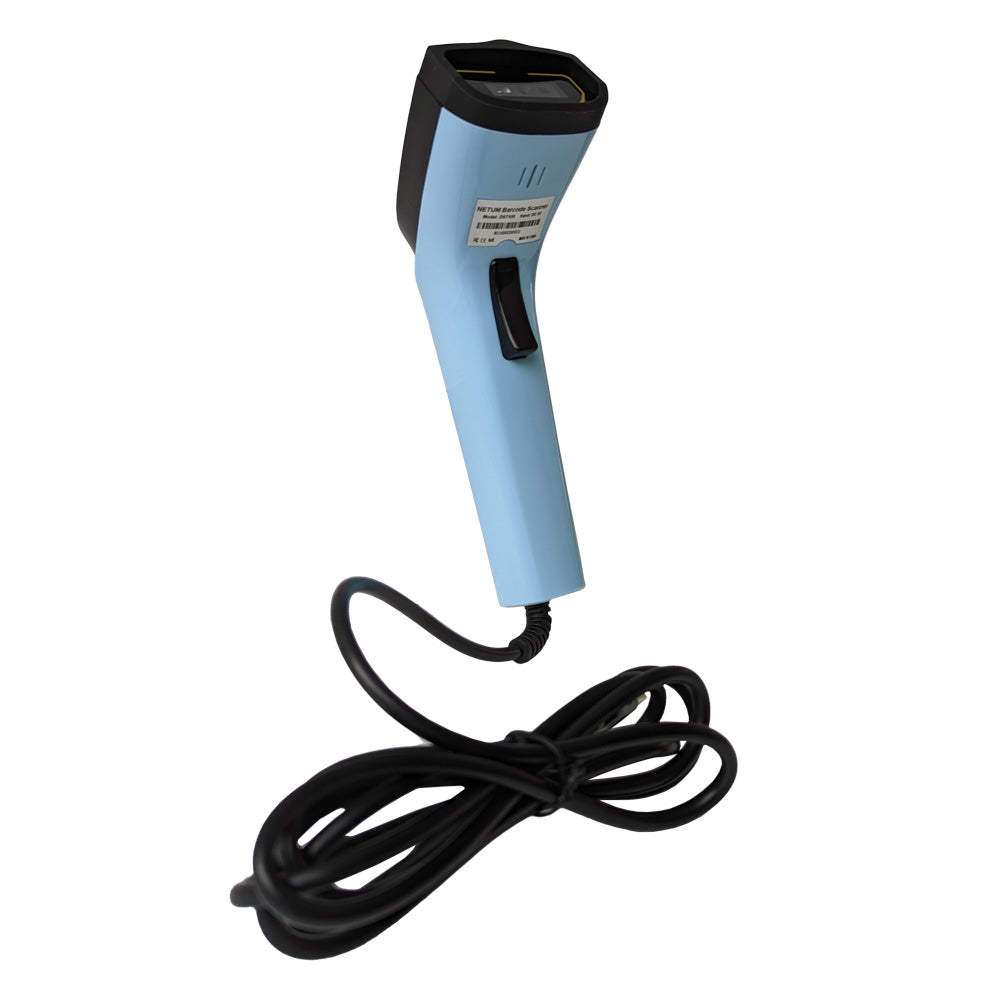

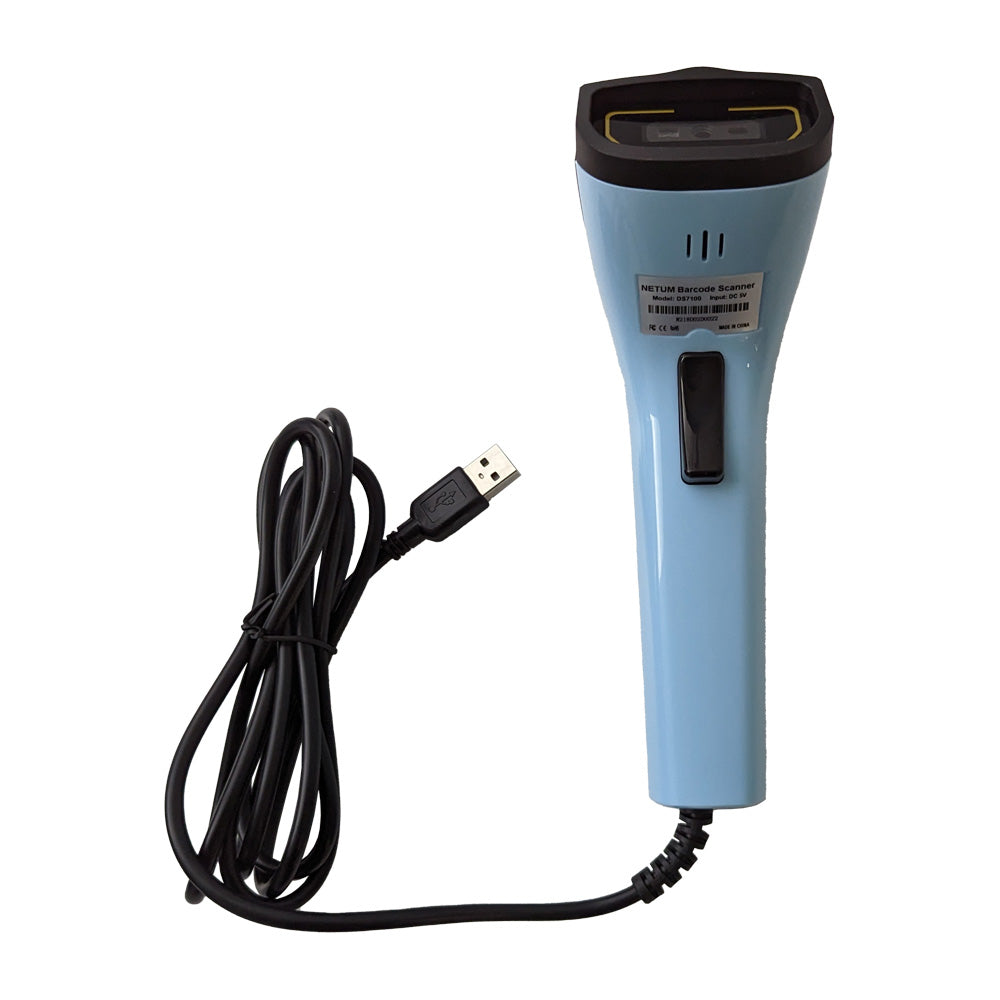

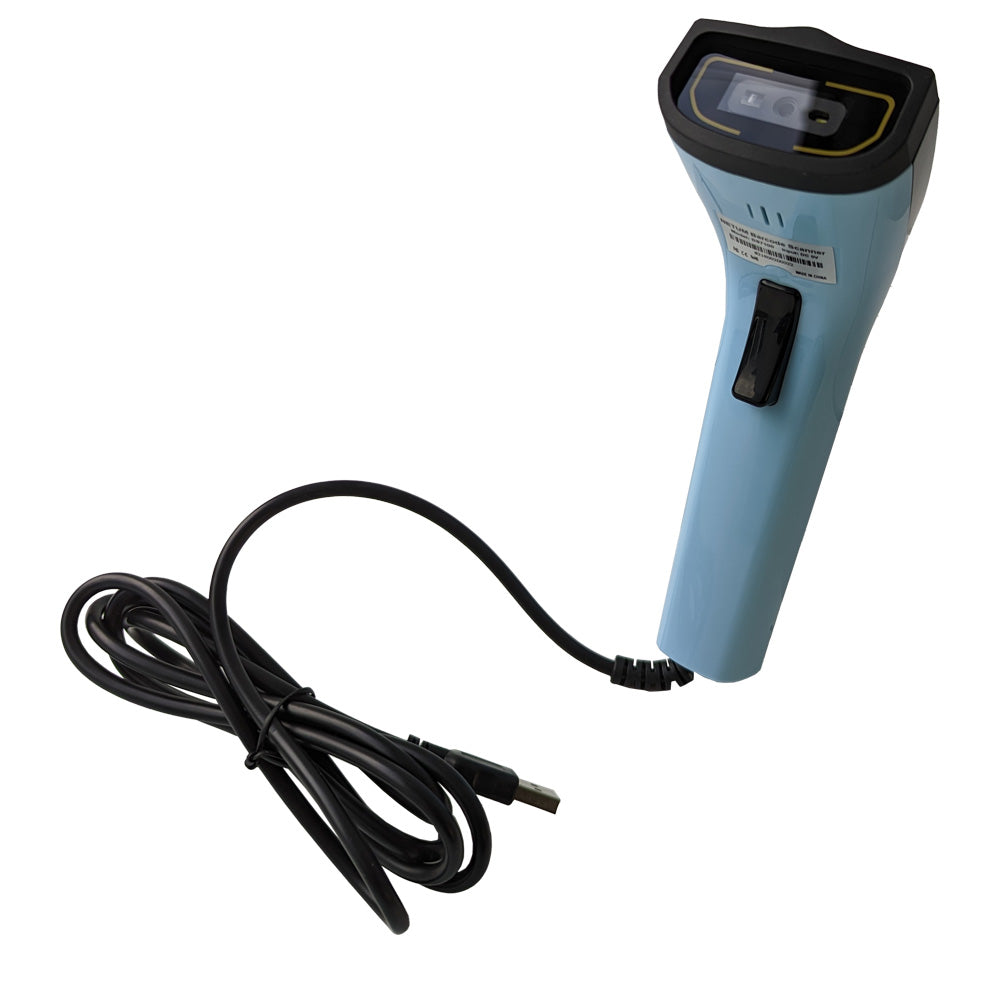

NETUM DS7100 2D Wired Handheld Auto Barcode Scanner

Features:

• Fast and accurate in reading 2D codes.
• Service life of button reaches up to 8 million times.

Specifications:

Optical Property

• Light Resource: CMOS(800*640)
• CPU:  32 bit high resolution
• Supported Symboligies:
  2D: PDF417、QR Code (QR1/2, Micro)、Data Matrix (ECC200, ECC000, 050, 080, 100, 140)、Chinese Sensible Code
  1D: Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11,
• Precision: â‰? mil (0.125mm)
• Decode error rate: Less than 1/8 million
• Transmission distance: Wired 1.5 m
• Depth of scan field:
  Code 39 40mm~165mm(5mil)
  Ean-13 50mm~365mm(13mil)
  Data Matrix 35mm~115mm(10mil)
  QR Code 35mm-145mm (15mil)
  PDF 417 45mm-115mm(6.67mil)
• Print Contrast Signal: â‰?25°
• Scan angle: Yaw(Skew)55° & Pitch55°
• Charging Interface: USB
• Measure: L*W*H(mm) 205*73*110mm
• Weight: 170g
• Cable: 1.5m
• Color: Blue

Mechanical / Electrical

• Working Voltage: 3.3 VDC ±5%
• Current: Working 350mA

Environment

• Operating temperature: 0°C~+50°C
• Storage temperature: 20°C~70°C
• Humidity: 5%-95%

Packing List:

• Scanner with USB Cable × 1
• User's guide × 1
