Solar Tire Pressure Monitoring Systme

Features

• Real-time detection of tire pressure, temperature, to ensure traffic safety.
• Sensor with motion detection function, more power saving
• Leak alarm
• Pressure, excessive temperature alarm
• Show and sound double hint alarm
• Can set the tire pressure, temperature alarm standard value
• The tire position of any swap function (no need to remove the sensor in the tire)
• Four-wheel pressure, the temperature can be displayed at the same time
• Note: this system can effectively monitor the tire pressure and temperature, but it can not prevent sudden accidents. The company will not undertake any direct or indirect losses due to the damage of this product


Specifications

Model: X6

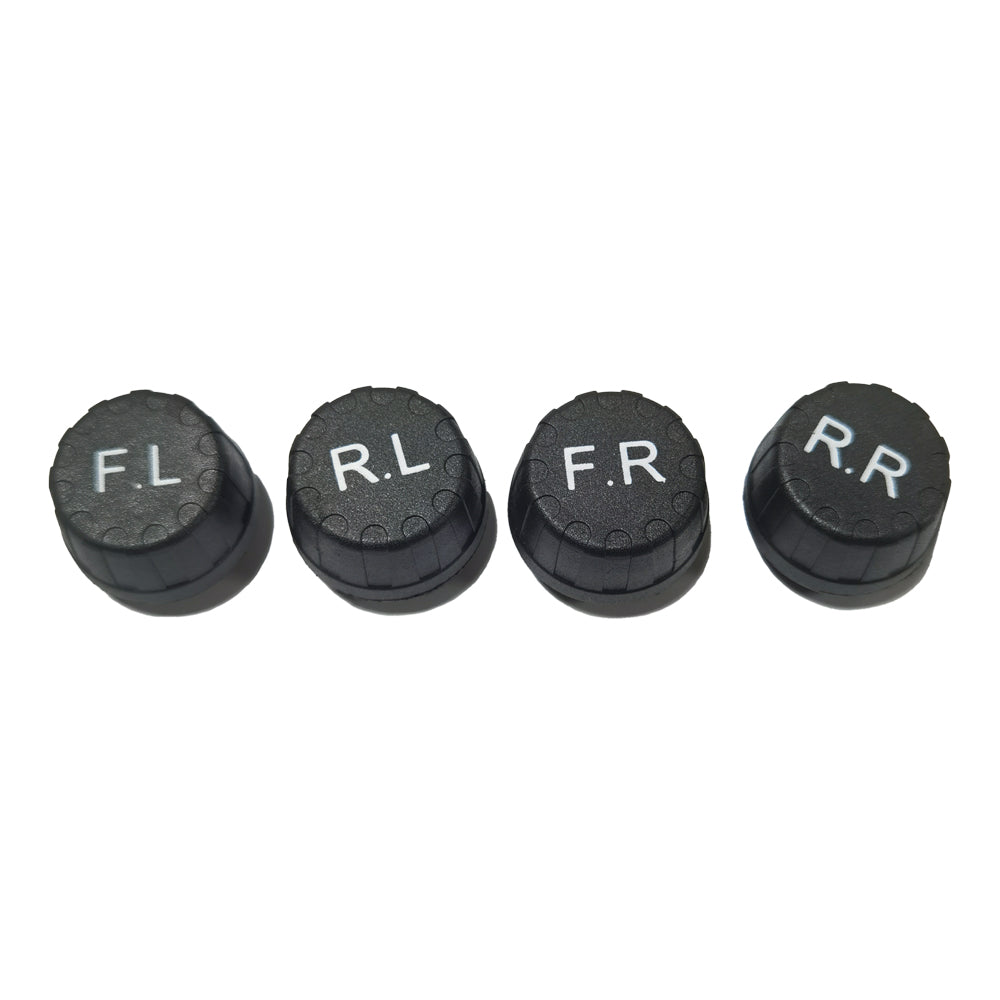

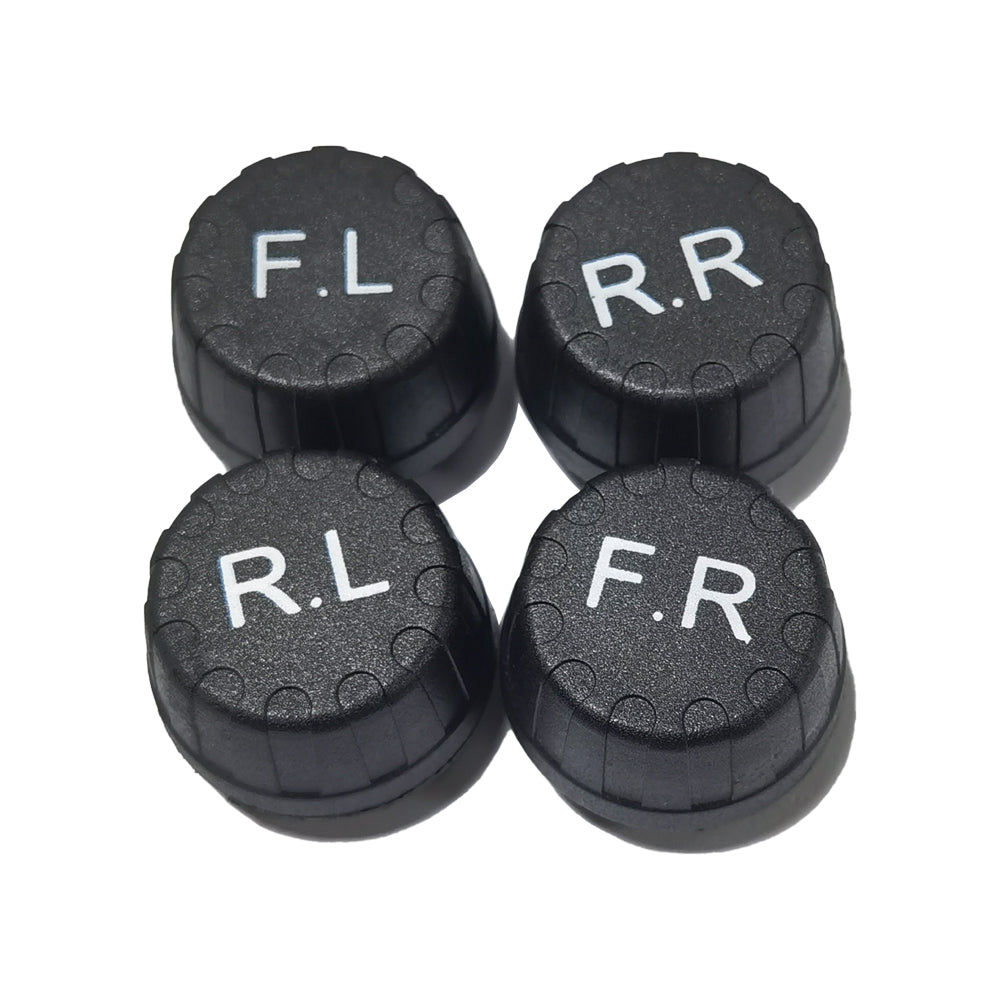

Sensor:

• Working frequency: 433. 9200MHz ± 0. 1MHz
• Operating Voltage: 5V
• Working current: Static<=1 uA, Working current < =15mA
• working environment temperature: -40℃~+125â„?/li>
• Monitoring range temperature: -40℃~+130â„?/li>
• Monitoring range pressure: 0barã€?. 5bar
• Accuracy temperature: ±2â„?/li>
• Accuracy pressure: ±0.1 bar

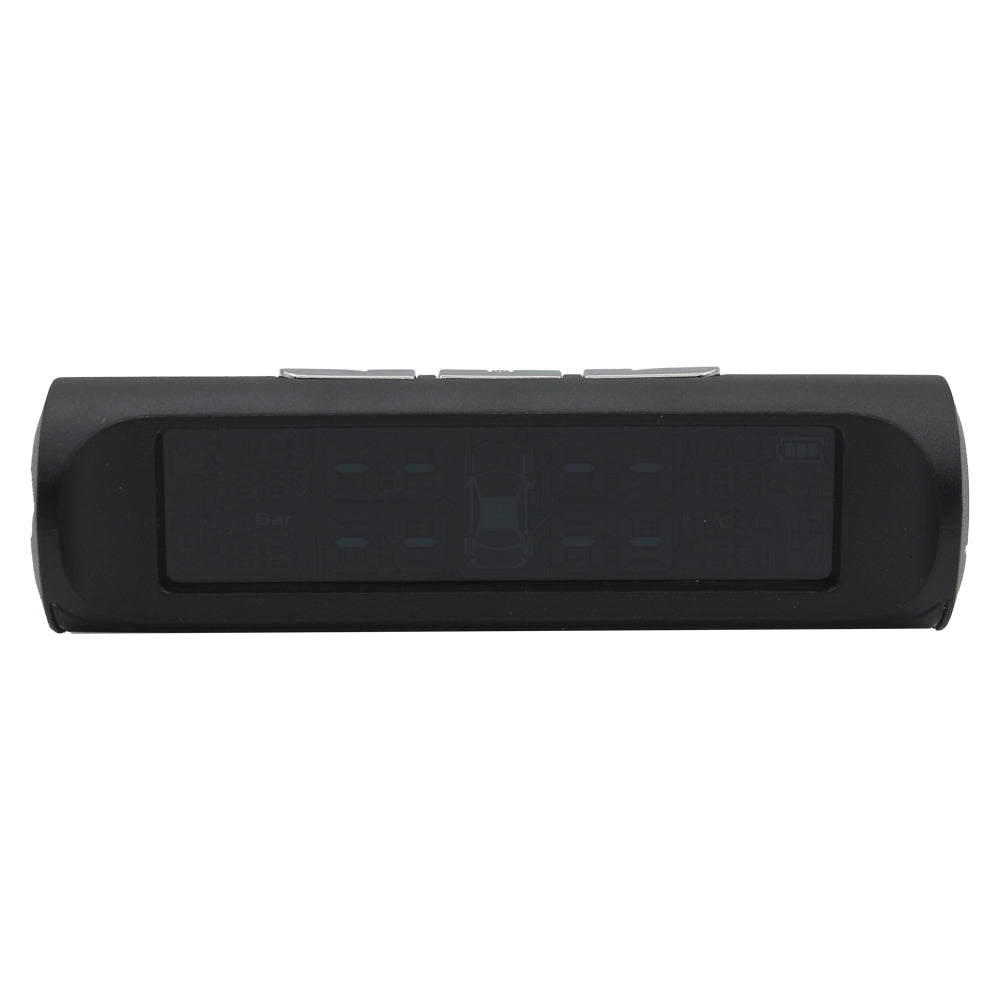

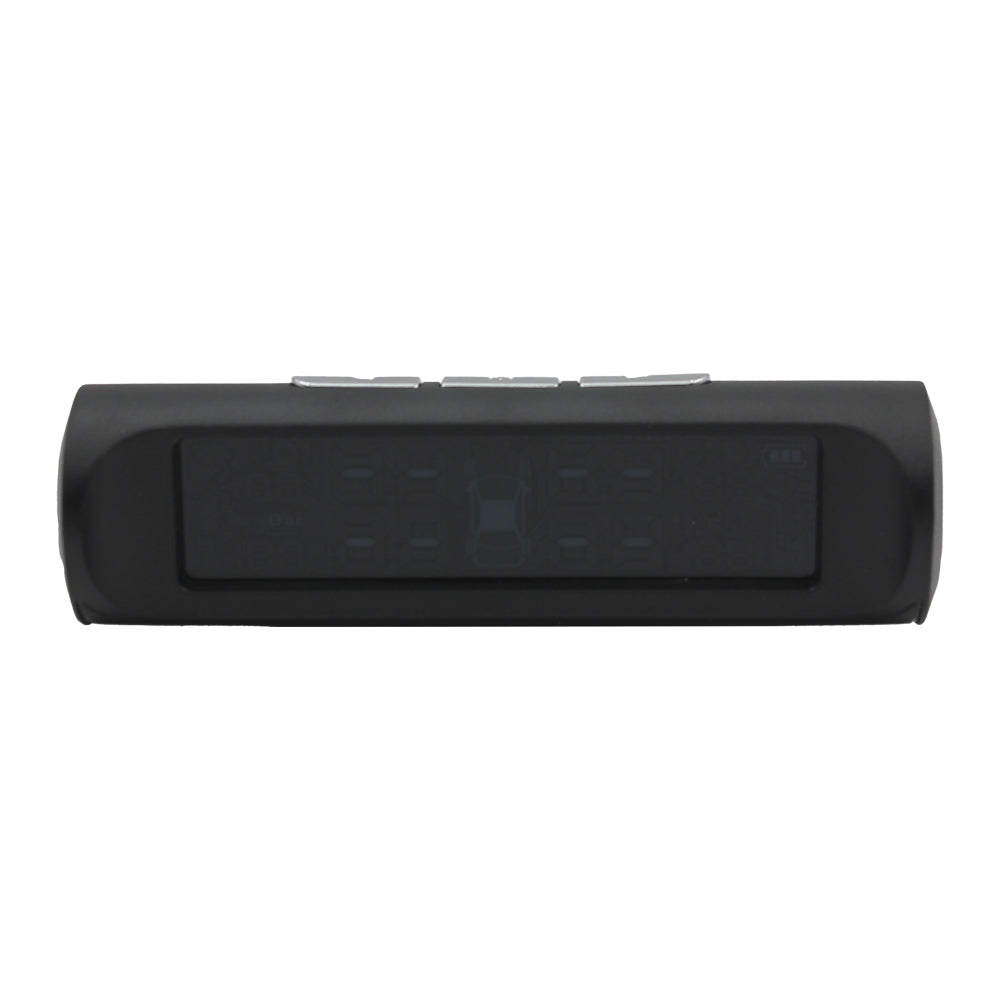

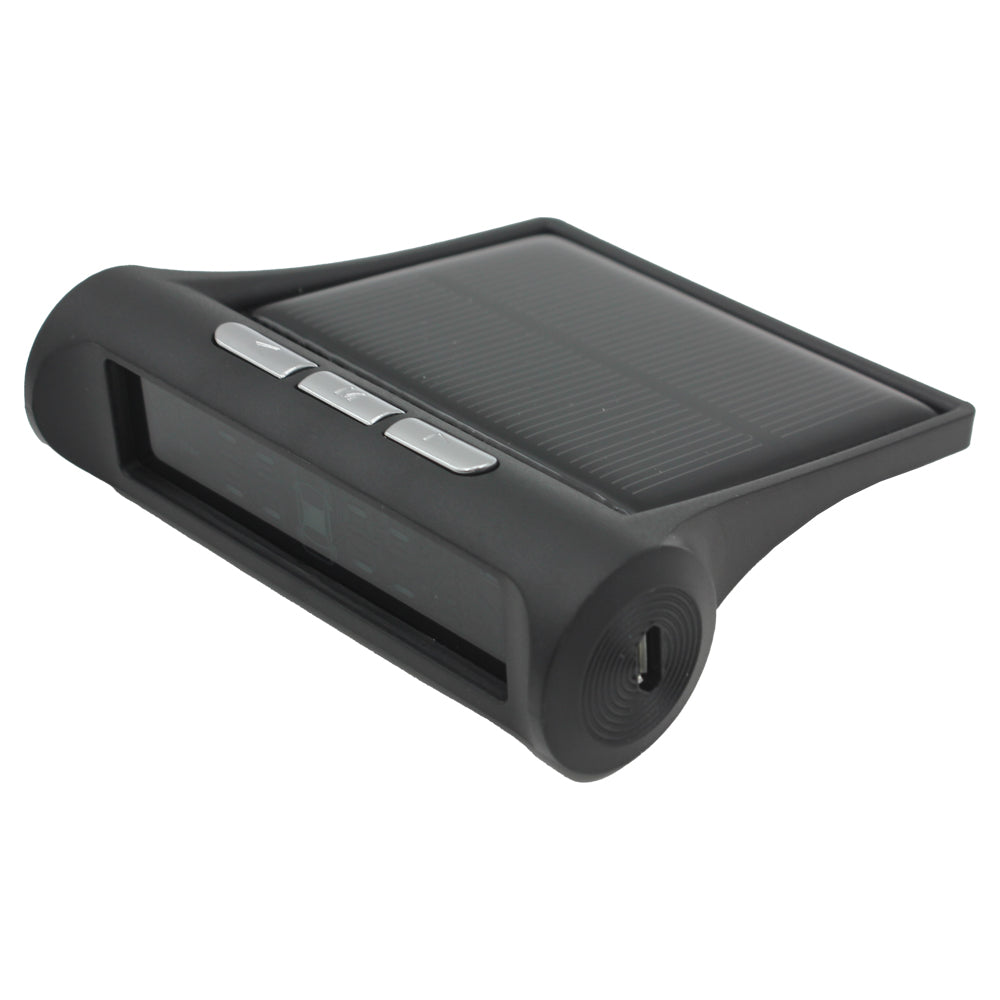

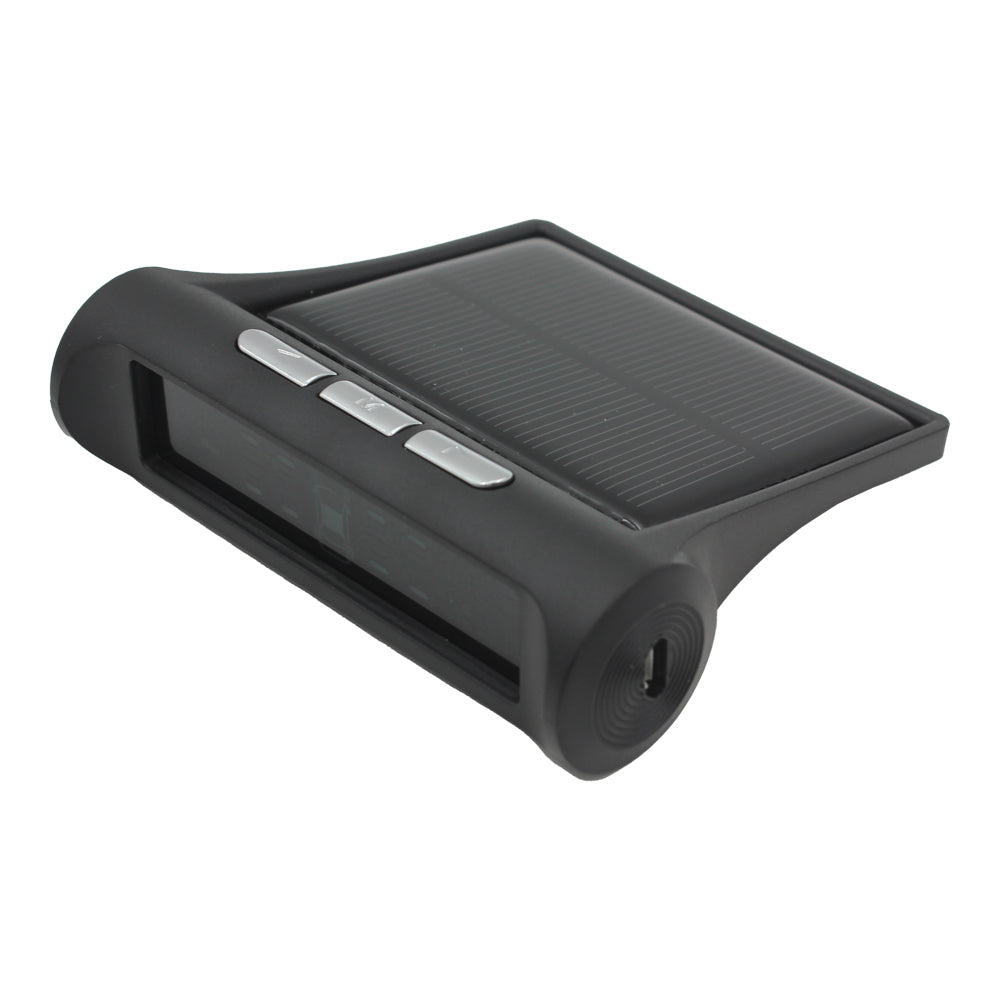

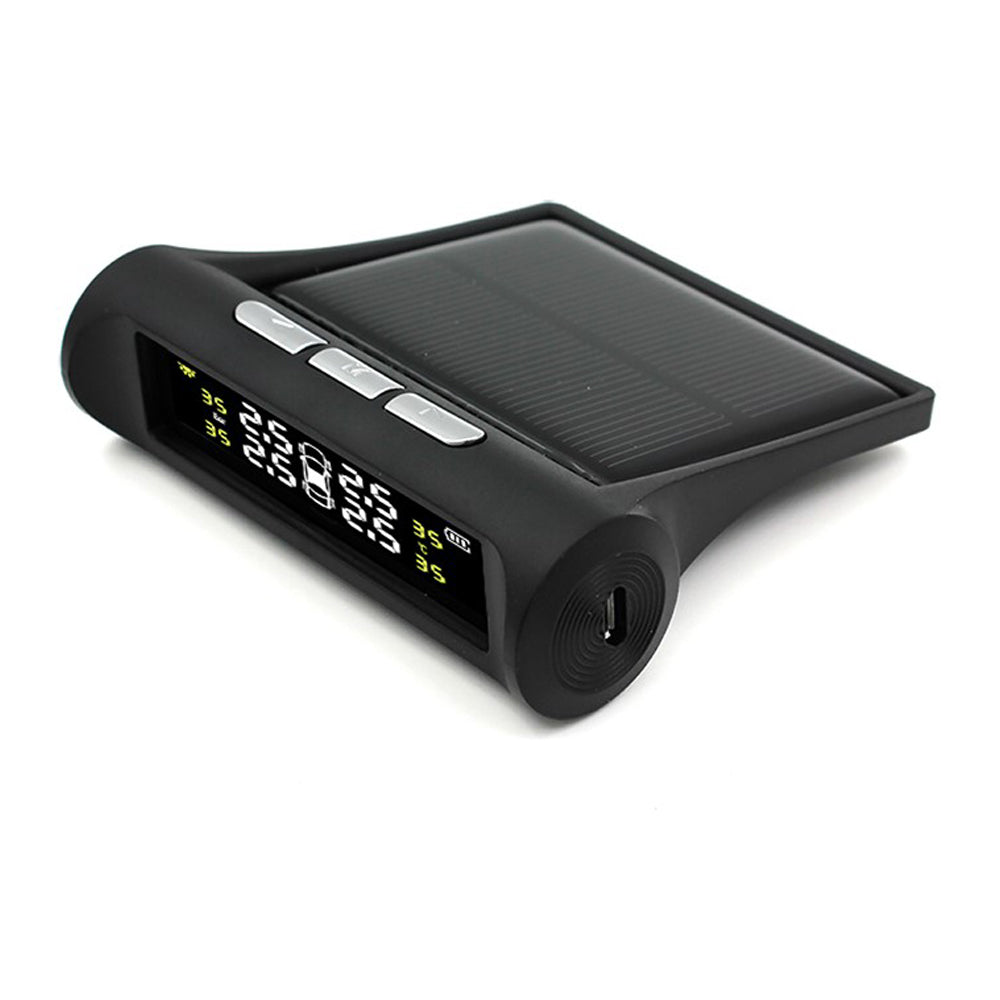

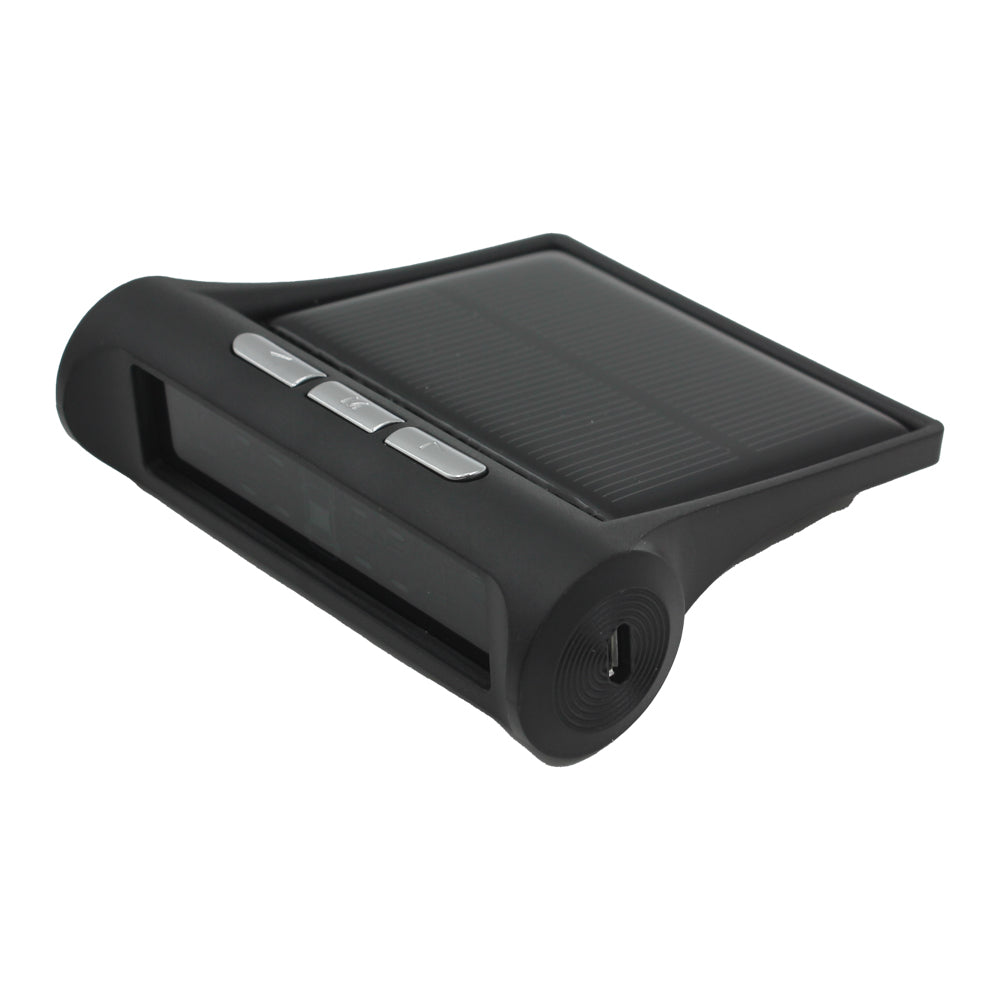

Receiver:

• Working frequency: 433. 9200MHz ± 0. 1MHz
• Operating Voltage: 2. 0ã€?. 6V
• Working current: Static<=50uA, Working current < =15mA
• working environment temperature: -20â„?ã€?70â„?/li>
